Pengenalan Produk

Apa Itu Pillow Block Bearing?

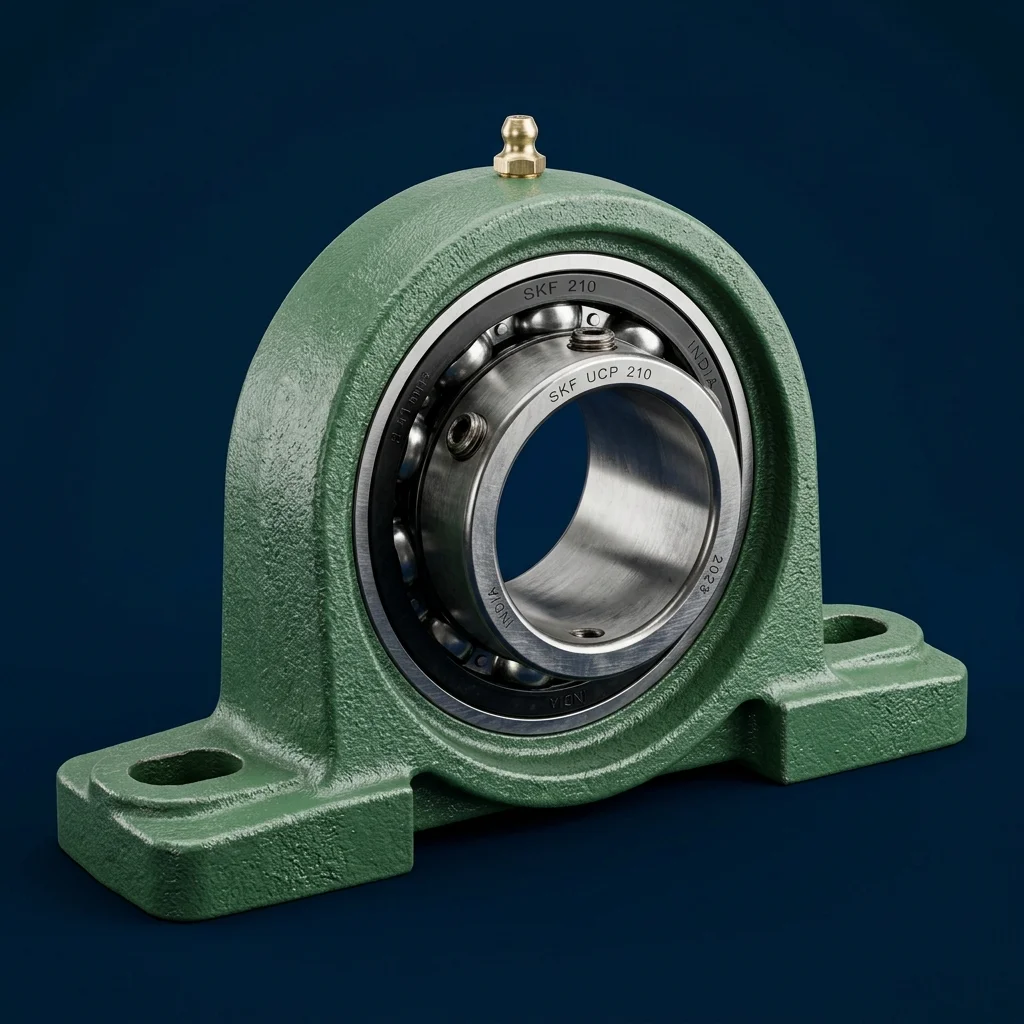

Pillow Block Bearing (juga dikenal sebagai Mounted Bearing Unit atau Plummber Block) adalah sebuah unit rakitan yang terdiri dari Insert Bearing (biasanya deep groove ball bearing tipe khusus) yang terpasang di dalam sebuah rumah penyangga (housing) yang terbuat dari besi cor (cast iron) atau baja. Housing ini dilengkapi baut untuk dipasang langsung pada rangka mesin.

Insert Bearing (UC)

Inti perputaran unit

Bentuk luar sferis (bisa self-aligning)
Set screw untuk mengunci ke poros
Seal karet pelindung ganda
Tahan debu dan kotoran

Housing & Fitting

Rumah besi cor yang solid

Housing P, F, FL, T
Cast iron tahan getaran
Dilengkapi Grease Nipple (nepel gemuk)
Siap dipasang dengan baut

Perbedaan Tipe Pillow Block (Housing)

Spesifikasi	Karakteristik Fisik	Posisi Pemasangan
Tipe UCP (Pillow Block)	Bentuk 'U' terbalik dengan 2 kaki di bawah	Dipasang di atas permukaan horizontal (meja/rangka bawah)
Tipe UCF (Flange 4 Baut)	Bentuk kotak (Flange) dengan 4 lubang baut	Dipasang menempel di dinding (permukaan vertikal)
Tipe UCFL (Flange 2 Baut)	Bentuk oval/belah ketupat dengan 2 lubang baut	Dipasang di dinding yang ruangnya sempit
Tipe UCT (Take-up)	Bentuk rel bisa digeser (sliding)	Menyetel ketegangan sabuk (belt) pada ujung konveyor

Katalog Stok

Katalog Mounted Bearing Kami

Menyediakan merk jepang terkemuka seperti FYH dan ASAHI, serta eropa seperti SKF dan FAG untuk ukuran shaft mulai dari 12mm hingga 100mm+.

Kode Bearing	Tipe / Kategori	Bore (Diameter Dalam)	Merek Utama	Status
UCP 201	Mounted Unit / Housing	12 mm	ASAHI / FYH / NACHI	Stok
UCP 202	Mounted Unit / Housing	15 mm	ASAHI / FYH / NACHI	Stok
UCP 203	Mounted Unit / Housing	17 mm	ASAHI / FYH / NACHI	Stok
UCP 204	Mounted Unit / Housing	20 mm	ASAHI / FYH / NACHI	Stok
UCP 205	Mounted Unit / Housing	25 mm	ASAHI / FYH / NACHI	Stok
UCP 206	Mounted Unit / Housing	30 mm	ASAHI / FYH / NACHI	Stok
UCP 207	Mounted Unit / Housing	35 mm	ASAHI / FYH / NACHI	Stok
UCP 208	Mounted Unit / Housing	40 mm	ASAHI / FYH / NACHI	Stok
UCP 209	Mounted Unit / Housing	45 mm	ASAHI / FYH / NACHI	Stok
UCP 210	Mounted Unit / Housing	50 mm	ASAHI / FYH / NACHI	Stok
UCP 211	Mounted Unit / Housing	55 mm	ASAHI / FYH / NACHI	Stok
UCP 212	Mounted Unit / Housing	60 mm	ASAHI / FYH / NACHI	Stok
UCP 213	Mounted Unit / Housing	65 mm	ASAHI / FYH / NACHI	Stok
UCP 214	Mounted Unit / Housing	70 mm	ASAHI / FYH / NACHI	Stok
UCP 215	Mounted Unit / Housing	75 mm	ASAHI / FYH / NACHI	Stok
UCP 216	Mounted Unit / Housing	80 mm	ASAHI / FYH / NACHI	Stok
UCP 217	Mounted Unit / Housing	85 mm	ASAHI / FYH / NACHI	Stok
UCP 218	Mounted Unit / Housing	90 mm	ASAHI / FYH / NACHI	Stok
UCF 201	Mounted Unit / Housing	12 mm	ASAHI / FYH / NACHI	Stok
UCF 202	Mounted Unit / Housing	15 mm	ASAHI / FYH / NACHI	Stok
UCF 203	Mounted Unit / Housing	17 mm	ASAHI / FYH / NACHI	Stok
UCF 204	Mounted Unit / Housing	20 mm	ASAHI / FYH / NACHI	Stok
UCF 205	Mounted Unit / Housing	25 mm	ASAHI / FYH / NACHI	Stok
UCF 206	Mounted Unit / Housing	30 mm	ASAHI / FYH / NACHI	Stok
UCF 207	Mounted Unit / Housing	35 mm	ASAHI / FYH / NACHI	Stok
UCF 208	Mounted Unit / Housing	40 mm	ASAHI / FYH / NACHI	Stok
UCF 209	Mounted Unit / Housing	45 mm	ASAHI / FYH / NACHI	Stok
UCF 210	Mounted Unit / Housing	50 mm	ASAHI / FYH / NACHI	Stok
UCF 211	Mounted Unit / Housing	55 mm	ASAHI / FYH / NACHI	Stok
UCF 212	Mounted Unit / Housing	60 mm	ASAHI / FYH / NACHI	Stok
UCF 213	Mounted Unit / Housing	65 mm	ASAHI / FYH / NACHI	Stok
UCF 214	Mounted Unit / Housing	70 mm	ASAHI / FYH / NACHI	Stok
UCF 215	Mounted Unit / Housing	75 mm	ASAHI / FYH / NACHI	Stok
UCF 216	Mounted Unit / Housing	80 mm	ASAHI / FYH / NACHI	Stok
UCF 217	Mounted Unit / Housing	85 mm	ASAHI / FYH / NACHI	Stok
UCF 218	Mounted Unit / Housing	90 mm	ASAHI / FYH / NACHI	Stok
UCFL 201	Mounted Unit / Housing	12 mm	ASAHI / FYH / NACHI	Stok
UCFL 202	Mounted Unit / Housing	15 mm	ASAHI / FYH / NACHI	Stok
UCFL 203	Mounted Unit / Housing	17 mm	ASAHI / FYH / NACHI	Stok
UCFL 204	Mounted Unit / Housing	20 mm	ASAHI / FYH / NACHI	Stok
UCFL 205	Mounted Unit / Housing	25 mm	ASAHI / FYH / NACHI	Stok
UCFL 206	Mounted Unit / Housing	30 mm	ASAHI / FYH / NACHI	Stok
UCFL 207	Mounted Unit / Housing	35 mm	ASAHI / FYH / NACHI	Stok
UCFL 208	Mounted Unit / Housing	40 mm	ASAHI / FYH / NACHI	Stok
UCFL 209	Mounted Unit / Housing	45 mm	ASAHI / FYH / NACHI	Stok
UCFL 210	Mounted Unit / Housing	50 mm	ASAHI / FYH / NACHI	Stok
UCFL 211	Mounted Unit / Housing	55 mm	ASAHI / FYH / NACHI	Stok
UCFL 212	Mounted Unit / Housing	60 mm	ASAHI / FYH / NACHI	Stok
UCFL 213	Mounted Unit / Housing	65 mm	ASAHI / FYH / NACHI	Stok
UCFL 214	Mounted Unit / Housing	70 mm	ASAHI / FYH / NACHI	Stok
UCFL 215	Mounted Unit / Housing	75 mm	ASAHI / FYH / NACHI	Stok
UCFL 216	Mounted Unit / Housing	80 mm	ASAHI / FYH / NACHI	Stok
UCFL 217	Mounted Unit / Housing	85 mm	ASAHI / FYH / NACHI	Stok
UCFL 218	Mounted Unit / Housing	90 mm	ASAHI / FYH / NACHI	Stok
UCT 201	Mounted Unit / Housing	12 mm	ASAHI / FYH / NACHI	Stok
UCT 202	Mounted Unit / Housing	15 mm	ASAHI / FYH / NACHI	Stok
UCT 203	Mounted Unit / Housing	17 mm	ASAHI / FYH / NACHI	Stok
UCT 204	Mounted Unit / Housing	20 mm	ASAHI / FYH / NACHI	Stok
UCT 205	Mounted Unit / Housing	25 mm	ASAHI / FYH / NACHI	Stok
UCT 206	Mounted Unit / Housing	30 mm	ASAHI / FYH / NACHI	Stok
UCT 207	Mounted Unit / Housing	35 mm	ASAHI / FYH / NACHI	Stok
UCT 208	Mounted Unit / Housing	40 mm	ASAHI / FYH / NACHI	Stok
UCT 209	Mounted Unit / Housing	45 mm	ASAHI / FYH / NACHI	Stok
UCT 210	Mounted Unit / Housing	50 mm	ASAHI / FYH / NACHI	Stok
UCT 211	Mounted Unit / Housing	55 mm	ASAHI / FYH / NACHI	Stok
UCT 212	Mounted Unit / Housing	60 mm	ASAHI / FYH / NACHI	Stok
UCT 213	Mounted Unit / Housing	65 mm	ASAHI / FYH / NACHI	Stok
UCT 214	Mounted Unit / Housing	70 mm	ASAHI / FYH / NACHI	Stok
UCT 215	Mounted Unit / Housing	75 mm	ASAHI / FYH / NACHI	Stok
UCT 216	Mounted Unit / Housing	80 mm	ASAHI / FYH / NACHI	Stok
UCT 217	Mounted Unit / Housing	85 mm	ASAHI / FYH / NACHI	Stok
UCT 218	Mounted Unit / Housing	90 mm	ASAHI / FYH / NACHI	Stok

💡 Tidak menemukan kode yang Anda butuhkan? Kami bisa sourcing hampir semua kode Pillow Block Bearing — hubungi tim kami via WhatsApp dengan menyebutkan kode bearing dan jumlah kebutuhan Anda.

💬 Tanya Stok & Harga via WhatsApp

Aplikasi Industri

Industri yang Menggunakan Bearing Ini

Pillow Block Bearing adalah komponen kritis di berbagai sektor industri.

🏭

Sistem Konveyor

Belt Conveyor
Roller Conveyor
Screw Conveyor

🌾

Pertanian

Mesin Giling Padi
Traktor
Harvester

🌴

Pabrik Sawit (PKS)

Conveyor Sawit
Elevator
Thresher

📦

Packaging

Mesin Pembungkus
Filling Machine
Sorter

🍽️

Food & Beverage

Mesin Roti
Konveyor Makanan (Tipe Stainless)
Mixer

🧱

Material Konstruksi

Mesin Batako
Pengaduk Semen
Konveyor Pasir

Pertanyaan Umum

FAQ — Pillow Block Bearing

Apa arti angka '205' pada kode UCP 205? ▼

Angka '2' menunjukkan tipe beban (duty) yaitu seri beban normal (standard duty). Angka '05' menunjukkan diameter lubang dalam (bore) poros. Cara hitungnya: 05 x 5mm = 25mm poros. Jadi UCP 205 adalah untuk besi poros (shaft) ukuran 25mm.

Bagaimana cara mengunci bearing UCP ke poros (as)? ▼

Pada inner ring bearing terdapat 2 buah baut tanam berukuran kecil (set screws). Setelah as dimasukkan ke dalam bearing, kencangkan kedua baut set screw tersebut menggunakan kunci L (hex key) secara bergantian hingga bearing mencengkeram poros dengan kuat dan tidak bisa bergeser.

Seberapa sering saya harus menyuntikkan gemuk (grease)? ▼

Tergantung kondisi lingkungan. Di lingkungan berdebu atau basah seperti pabrik bata atau tambang pasir, pelumasan ulang via grease nipple disarankan setiap 1-4 minggu sekali. Di dalam ruangan tertutup dan bersih, bisa 3-6 bulan sekali. Suntikkan pelan-pelan hingga sedikit grease lama terdorong keluar dari sela seal karet pelindung bearing.
